    Thales HSM Luna PCIe A750

    Code: 10-72-070-A750-1Y 10-72-070-A750-2Y 10-72-070-A750-3Y 10-72-070-A750-4Y 10-72-070-A750-5Y Choose variant
    Thales Luna PCIe HSM A700
    €15 210 €17 850 €19 358 €21 621 €23 883 from €15 210 €18 404,10 incl. VAT €21 598,50 incl. VAT €23 423,18 incl. VAT €26 161,41 incl. VAT €28 898,43 incl. VAT from €18 404,10 incl. VAT
    In stock In stock In stock In stock In stock Choose variant
    HSM price including maintenance for: ?
    Chosen variant is not available. Reset selected parameters.

    THALES HSM Luna PCIe A750 delivers higher performance while maintaining the same security model as other devices in the Luna PCIe HSM family. Cryptographic operations are performed within tamper-resistant hardware that meets the requirements of FIPS 140-2 Level 3 and is based on a platform certified according to Common Criteria EAL4+. The device can also be deployed in architectures requiring QSCD compatibility. The A750 model is designed for more demanding integrations where higher cryptographic performance is required.

    There are hundreds of scenarios where you can use seamlessly the HSM to secure your sensitive data/records. Let us know, we are always happy to help you.

    Download THALES LUNA PCIe Product Brief.

    Detailed information

    Quantity
    discounts

    Free shipping
    over 300 EUR

    Quick process
    & shipping

    We accept
    online payments

    Product detailed description

    Key Features

    • Enterprise PCIe HSM Solution
    • Hardware Protection of Keys and Cryptographic Operations
    • High Throughput of Cryptographic Operations
    • FIPS 140-2 Level 3 and FIPS 140-3 Level 3 Certification
    • PCIe Card for Server Installation
    • Tamper Resistant Protection of Cryptographic Keys
    • Common Criteria EAL4+ Architecture
    • Support PKCS#11, Microsoft CNG/CAPI and Java JCA/JCE
    • Password-Based Authentication
    • Basic Auditing Functions



    Performance and Specifications

    • RSA-2048: Up to 5,000 Operations/s
    • ECC P-256: Up to 10,000 Operations/s
    • AES-GCM: Up to 10,000 Operations/s
    • Key Memory: 16 MB (Newer Firmware Up to 32 MB)
    • Form Factor: PCIe Card
    • Optimized for Enterprise Operations and High Load

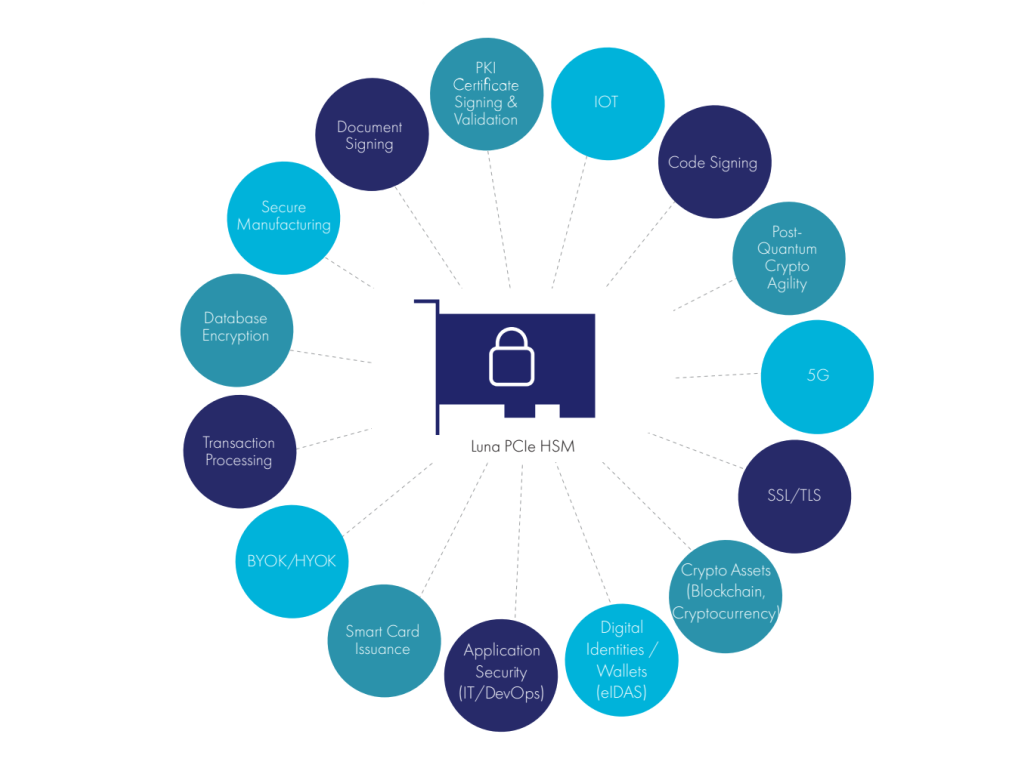

    Typical Uses

    • Enterprise PKI Infrastructure
    • Data centers
    • Large TLS/SSL infrastructures
    • PKI and certification authorities
    • Digital signatures and qualified services
    • Database protection
    • TLS/SSL acceleration
    • IoT infrastructure



    Supported Algorithms & Cryptography

    • Full Suite B support
    • Asymmetric: RSA, DSA, Diffie-Hellman, ECC (ECDSA, ECDH, Ed25519, ECIES) with named, user-defined and Brainpool curves, KCDSA, and more
    • Symmetric: AES, AES-GCM, Triple DES, DES, ARIA, SEED, RCS, RC4, RC5, CAST, and more
    • Hash / Message Digest / HMAC: SHA-1, SHA-2, SHA-3, SM2, SM3, SM4, and more
    • Key Derivation: SP800-108 Counter Mode
    • Key Wrapping: SP800-38F
    • Random Number Generation: NIST SP 800-90 A/B/C certified, AIS 20/31 compliant to DRG.4
    • Digital Wallet Encryption: BIP32



    Operating Systems & API (additional)

    • Supported OS: Windows, Linux
    • API: also OpenSSL (in addition to PKCS#11, Microsoft CAPI/CNG and Java JCA/JCE already listed)



    Security Features

    • Multiple roles for strong separation of duties
    • Multi-person MofN with multi-factor authentication
    • Secure audit logging
    • High-assurance delivery with secure transport mode
    • Functionality Modules – extend native HSM functionality and deploy custom code within the secure confines of the HSM
    • Compliance with GDPR, eIDAS, HIPAA, PCI-DSS, and more



    Certifications (additional)

    • FIPS 140-2 / 140-3 Level 3 also available with Multi-Factor (PED) authentication
    • Common Criteria EAL4+ specifics: AVA_VAN.5 and ALC_FLR.2, against Protection Profile EN 419221-5
    • QSCD listing for eIDAS compliance
    • Singapore NITES Common Criteria Scheme
    • Brazil INMETRO Approved (formerly ITI)
    • NATO Approved for Use up to Restricted

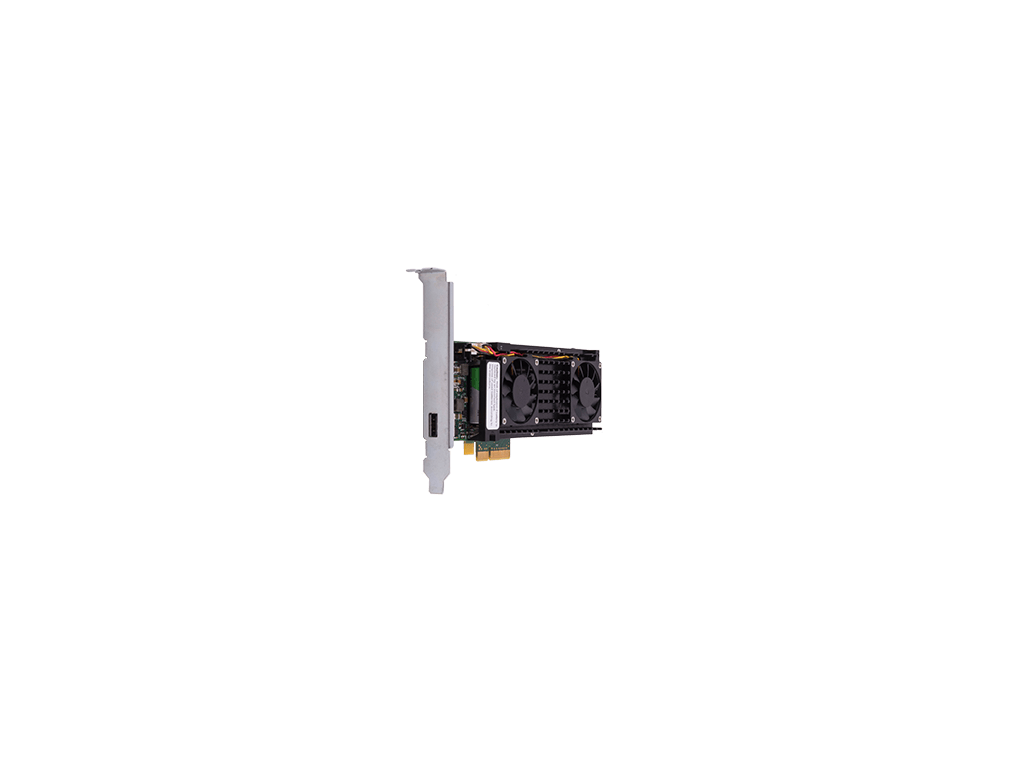

    Physical Characteristics

    • Low profile PCIe card
    • Dimensions: 69.6 mm × 167 mm × 18.7 mm (2.74" × 6.57" × 0.74")
    • Power consumption: 18 W maximum, 14 W typical
    • Heat dissipation: 61.4 BTU/hr maximum, 47.8 BTU/hr typical
    • Temperature: operating 0 °C – 50 °C, storage −20 °C – 60 °C
    • Relative humidity: 5% to 95% (38 °C), non-condensing



    Host Interface & Standards

    • PCI-Express CEM 3.0, PCI, PCI Express Base 2.0
    • UL, CSA, CE, FCC, VCCI, C-TICK, KC MARK
    • RoHS2, WEEE, India BIS [IS 13252 (Part 1)/IEC 60950-1]



    Reliability

    • Backup/restore
    • High Availability (HA)
    • Mean Time Between Failure (MTBF): 997,508 hours

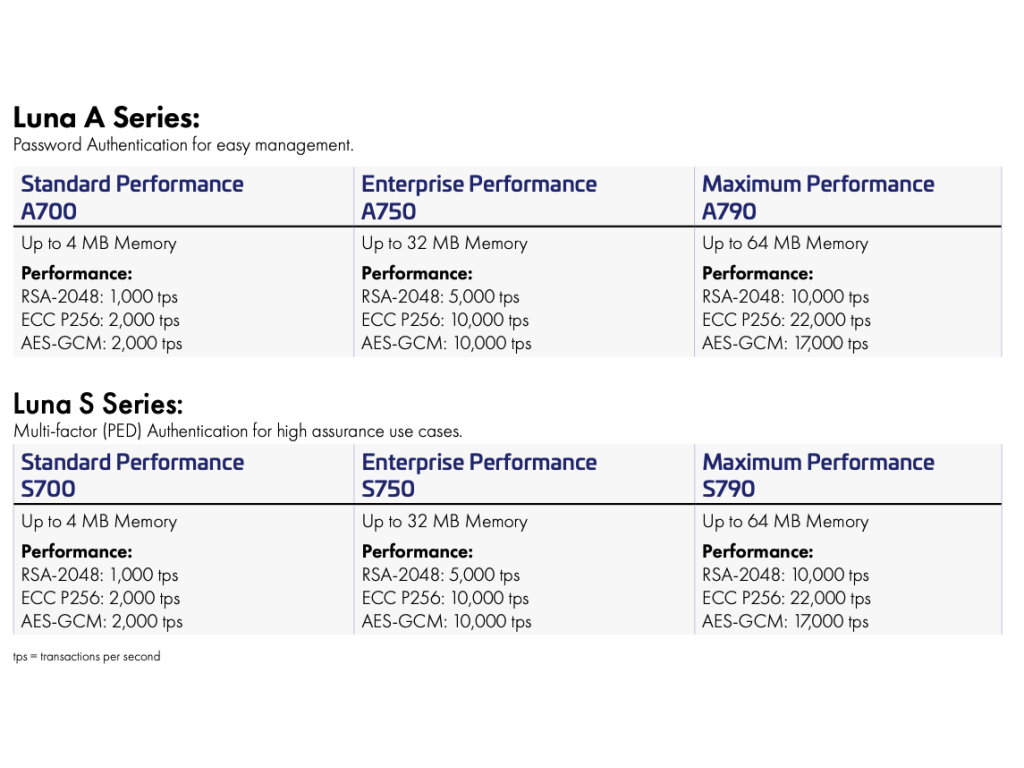

    Positioning within the Luna PCIe HSM Range

    • A750 – Enterprise Performance, Luna A Series (Password Authentication), up to 32 MB memory
    • Lower model: A700 (Standard); higher model: A790 (Maximum Performance)
    • Luna S Series (S700/S750/S790) with multi-factor (PED) authentication for high-assurance use cases

    Thales (formerly Gemalto)

    Thales is a French technology group operating in aerospace, defence and security, space, cybersecurity, and digital identity. It employs more than 80,000 people across nearly 70 countries, and its solutions are relied upon by governments, banks, telecom operators, and industrial enterprises worldwide.

    In the field of digital security, Thales builds on the heritage of SafeNet and Gemalto, both of which were world leaders in data protection, cryptographic key management, and the issuance of digital identities. Gemalto became part of the Thales Group in 2019, and its portfolio now sits within the Thales Cyber & Digital Identity division. As a result, Thales products combine proven technologies — deployed at certification authorities, government institutions, and financial organizations for decades — with long-term support and a global footprint.

    Thales security solutions are designed to meet the most demanding international standards and certifications (such as FIPS 140-2/140-3 and Common Criteria), and form a root of trust for public key infrastructure (PKI), qualified trust services under eIDAS, data protection, payment systems, and digital identities.

    By choosing a Thales product, you gain technology from a trusted global provider of digital security, backed by long-term support, regular certifications, and worldwide infrastructure.
