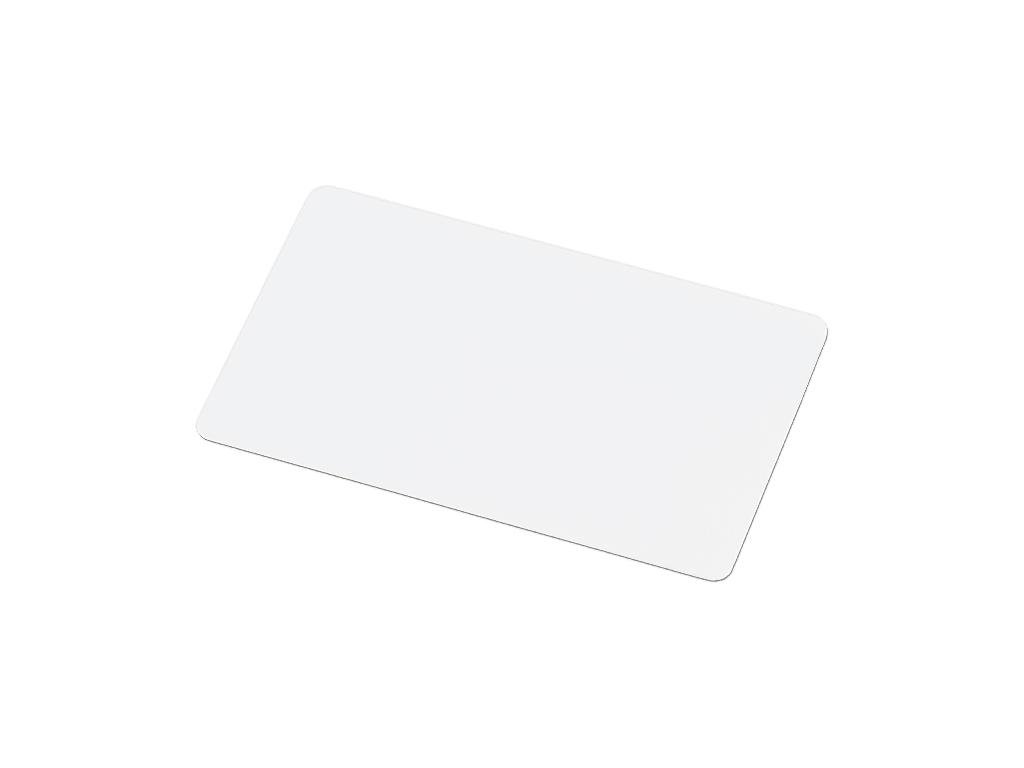

Contactless plastic RFID card ISO Mifare Ultralight EV1 (13,56 MHz)

Product detailed description

• 640-bit or 1312-bit, organized into 20 or 41 pages with 4 bytes per page
• First 512 bits compatible with MF0ICU1
• Operationally programmable read-only lock function per page for the first 512 bits
• Operating programmable read-only lock function on 2 pages above on page 15
• 32-bit user-definable one-time programmable (OTP) area.
• 384-bit or 1024-bit freely available user read/write area (12 or 32 pages)
• 3 independent, true unidirectional 24-bit counters at the top of the user area
• Tamper protection for counters, OTP area, and lock bits
• Configurable password protection with optional failed attempt limit
• ECC-based authenticity signature
• 10-year data retention
• Write endurance 100,000 cycles
• Write endurance for unidirectional counters 1,000,000 cycles

Contactless energy and data transfer

In the MIFARE® system, the MF0ULx1 is connected to a coil with several turns. MF0ULx1 complies with TFC.0 (Edmondson) and TFC.1 (ISO) ticket formats.

The MF0ULx1 chip, which contains a 17 pF on-chip resonant capacitor, supports both TFC.1 and TFC.0 ticket formats.

Anti-collision

The intelligent anti-collision function allows more than one card to be in use at the same time. The anti-collision algorithm selects each card individually. It ensures that the transaction with the selected card is carried out correctly without interference from other cards in use.

Easy integration and user convenience

The MF0ULx1 is designed for easy integration and user convenience, enabling complete ticketing transactions to be processed in less than 35 ms.

Security

• The manufacturer has programmed a 7-byte UID for each device
• 32-bit user-definable one-time programmable (OTP) area
• 3 independent 24-bit unidirectional counters
• Programmable read-only lock function per page (per 2 pages for the extended memory section)
• ECC-based authenticity signature
• 32-bit password protection to prevent unwanted memory operations
