    Home / Contactless cards / Contactless plastic RFID card ISO Mifare Ultralight C (13,56 MHz)

    Contactless plastic RFID card ISO Mifare Ultralight C (13,56 MHz)

    Code: 100_000154
    More for less
    €1 –35 %

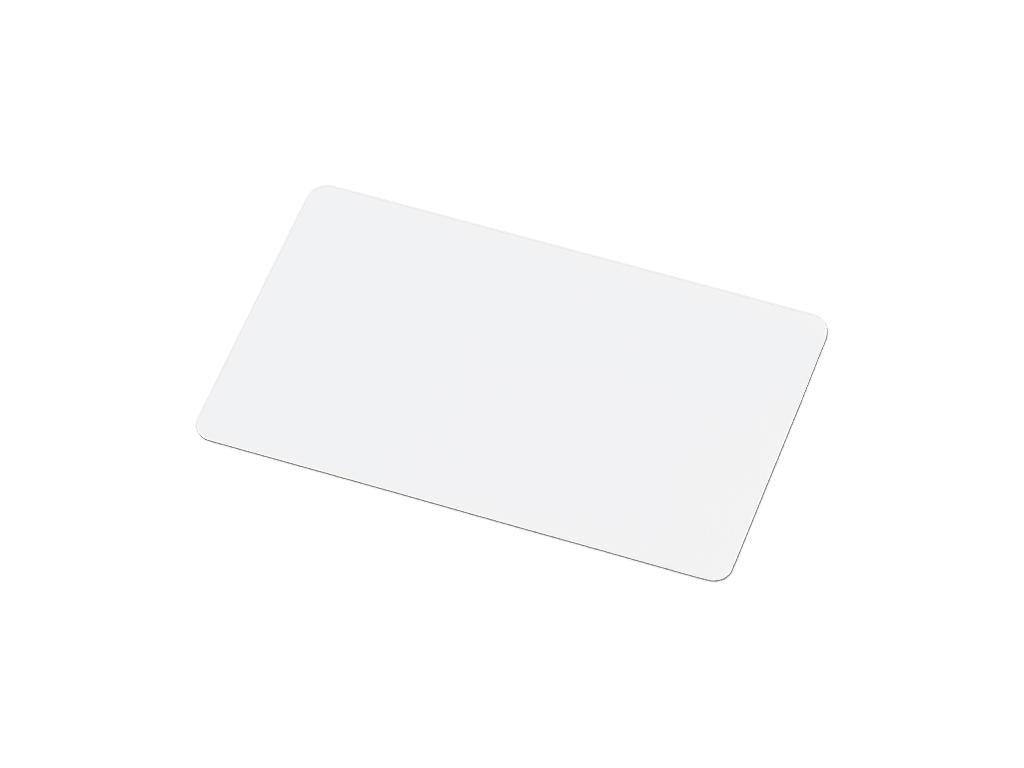

    Contactless RFID plastic card ISO Mifare 4K S70
    €1 –35 % €0,65 €0,79 incl. VAT
    In stock

    Contactless plastic RFID card with one of the most widely used chips, Mifare Ultralight C, operating at a frequency of 13.56 kHz. It allows data to be written and rewritten. It is primarily used in catering, attendance, and loyalty systems. It is also widely used in public transport. Data transfer speed - 106 kbit/s.

    This chip card can be printed in full color without any problems, supplemented with a barcode, text, image, logo, etc. You can learn more about printing options in a separate article. The dimensions are standardized, i.e. CR80, thickness 0.76 mm. The material is PVC, i.e. polyvinyl chloride.

    Quantity discounts
    200 - 499 pcs 5 %
    500 - 999  pcs 10 %
    1000 - 1999 pcs 15 %
    2000 - 4999 pcs 20 %
    5000 - 9999 pcs
    25 %
    10000+ pcs individual pricing
    free shipping to EU from 500 EUR
    If you request a larger quantity (with special discount), feel free to contact us - sales@qscd.eu

    Detailed information

    Quantity
    discounts

    Free shipping
    over 300 EUR

    Quick process
    & shipping

    We accept
    online payments

    Product detailed description

    Security

    • 3DES authentication
    • Anti-cloning support with a unique 7-byte serial number for each device
    • 32-bit user-programmable OTP area
    • Operationally programmable read-only lock function per page for the first 512 bits
    • Read-only lock per block for memory above 512 bits

    MIFARE RF Interface (ISO/IEC 14443 A)

    • Contactless data transfer and power supply
    • Operating frequency 13.56 MHz
    • Data integrity 16-bit CRC, parity, bit encoding, bit counting
    • 7-byte serial number (cascade level 2 according to ISO/IEC 14443-3)
    • Fast counter transaction: < 10 ms
    • Operating distance up to 100 mm depending on antenna geometry and reader configuration
    • Data transfer 106 kbit/s
    • Anti-collision
    • Typical transaction: < 35 ms

    EEPROM

    • Total memory 1536 bits
    • 36 pages, 1152-bit user r/w area
    • Operationally programmable read-only lock function per page for the first 512 bits
    • 32-bit user-definable one-time programmable (OTP) area
    • Data retention for 10 years
    • 512-bit compatible with MF0ICU1
    • Operationally programmable read-only lock function per block
    • 16-bit unidirectional counter
    • Write endurance 100,000 cycles

    Additional parameters

    Category: Contactless cards
    Warranty: 1 year
    Weight: 0.01 kg
